Luun assembly guide

Assembly

Simple setup for your Luun modules. Unpack the frame, attach the legs, place the cushions, then connect pieces together with the built-in clamps.

Tools are included. Your box includes the bolts, washers, felt pads, legs, and Allen wrench needed for setup.
Modular connection. Individual pieces connect underneath using the built-in clamp system.

Parts & tools

Confirm all parts are included before you begin. Keep the bolts, washers, felt pads, and Allen wrench nearby during setup.

Parts list

A
Back Cushions
Back cushions illustration
B

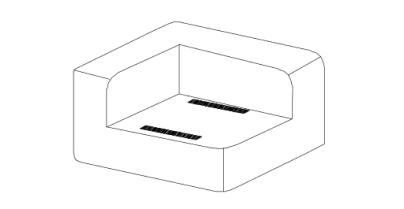

Frame Body
Frame body illustration
C
Seat Cushions
Seat cushions illustration
D
Legs
Legs illustration

Tools list (all included)

1

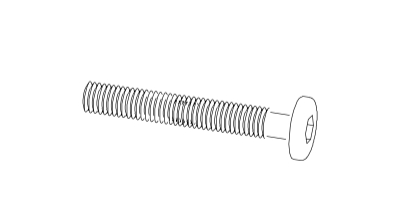

1/4" Bolts
Quarter inch bolts illustration
2
Flat Washer
Flat washer illustration
3
Felt Pad
Felt pad illustration
4
Allen Wrench
Allen wrench illustration

Build each module

Each seat follows the same simple process: attach the legs, secure the parts, then place the cushions.

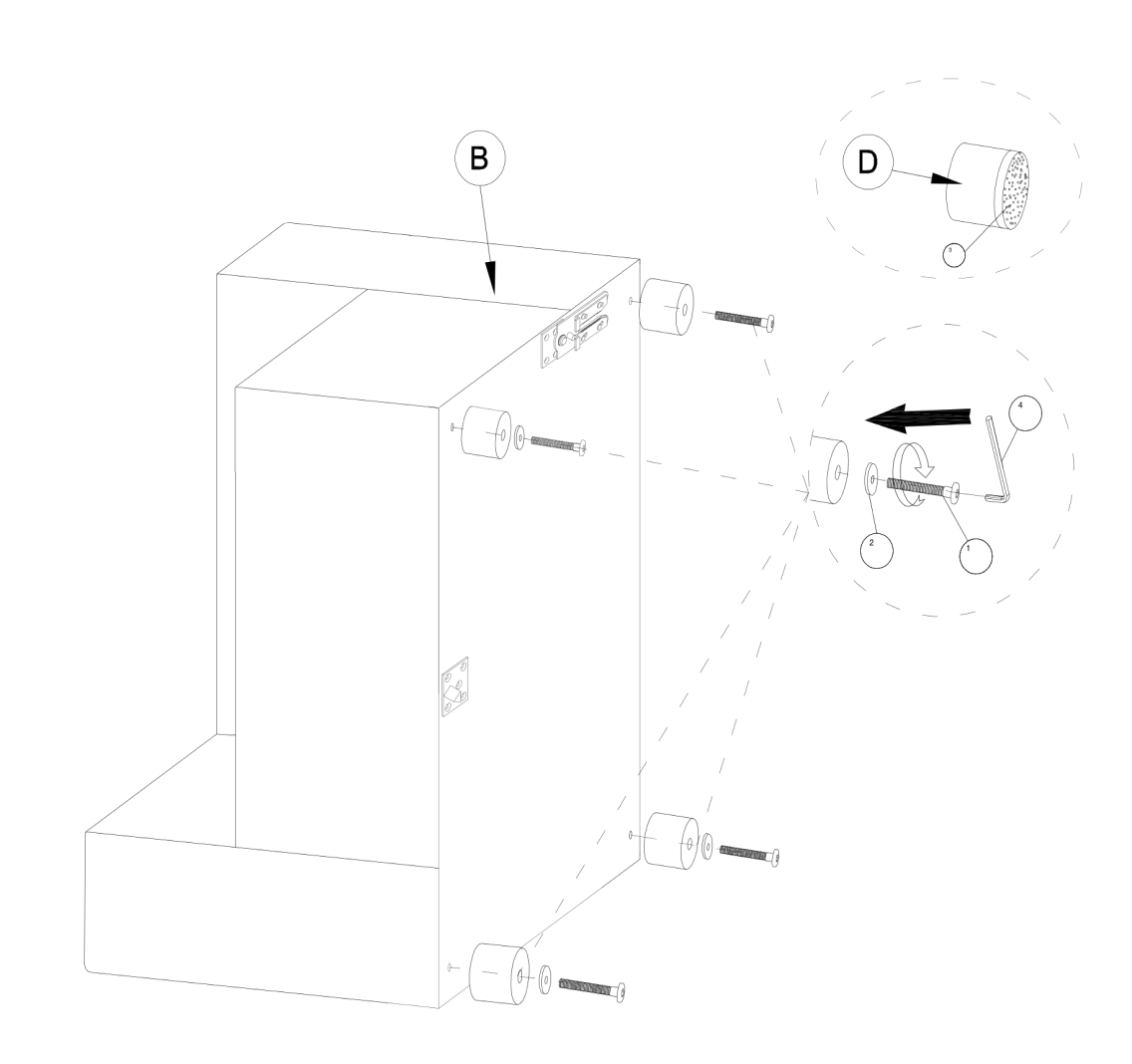

Step 1

Attach the legs to the frame body.

Turn the frame body on its side, align each leg, then secure with the included bolt and washer using the Allen wrench.

Step 1 assembly illustration showing legs attaching to the frame body

Step 2

Add the seat cushion.

Place the seat cushion on top of the frame body and make sure it sits evenly along the front and sides.

Step 2 assembly illustration showing the seat cushion placement

Step 3

Place the back cushion.

Set the back cushion into position. Repeat these steps for each module before connecting pieces together.

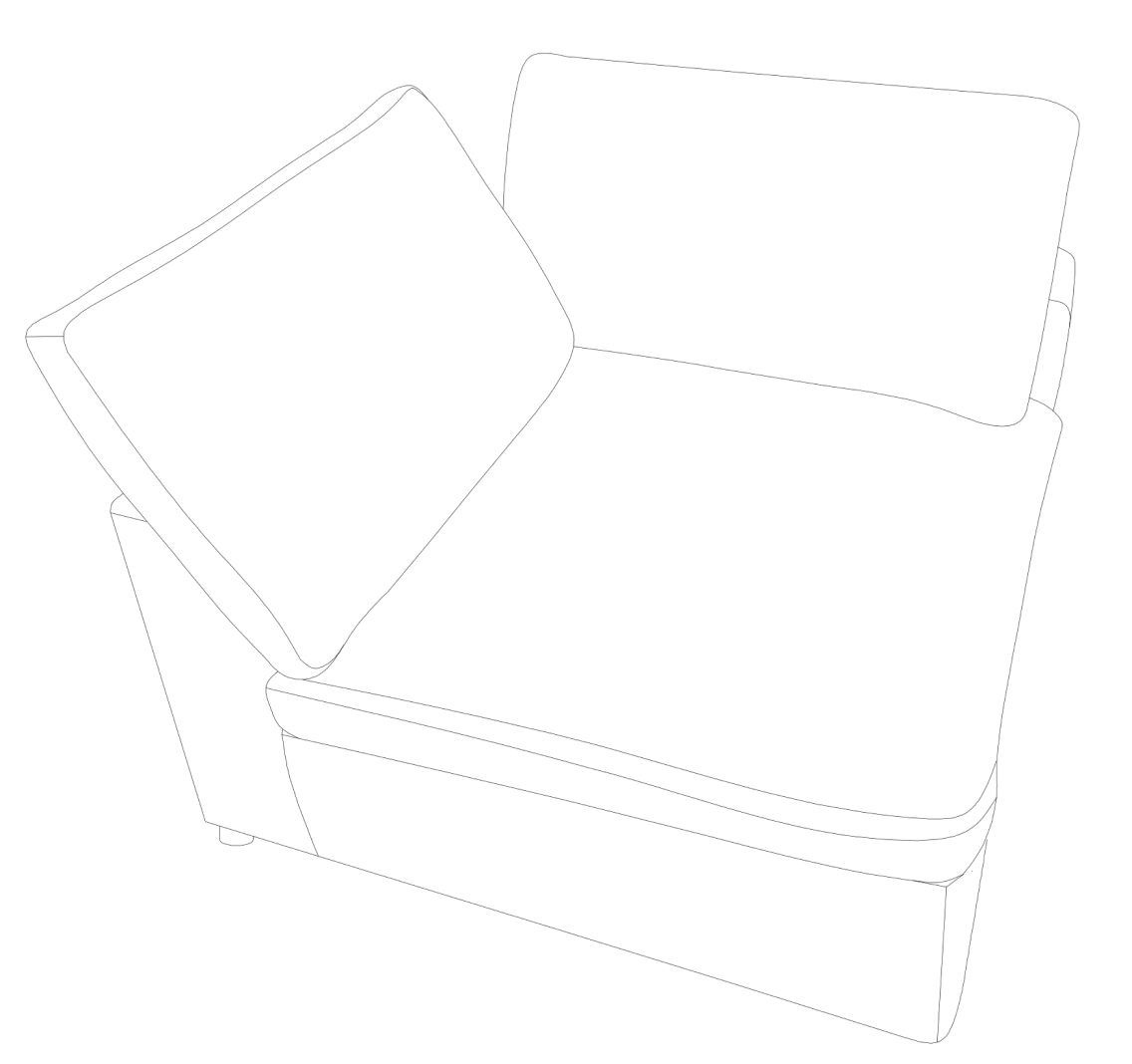

Step 3 completed module illustration

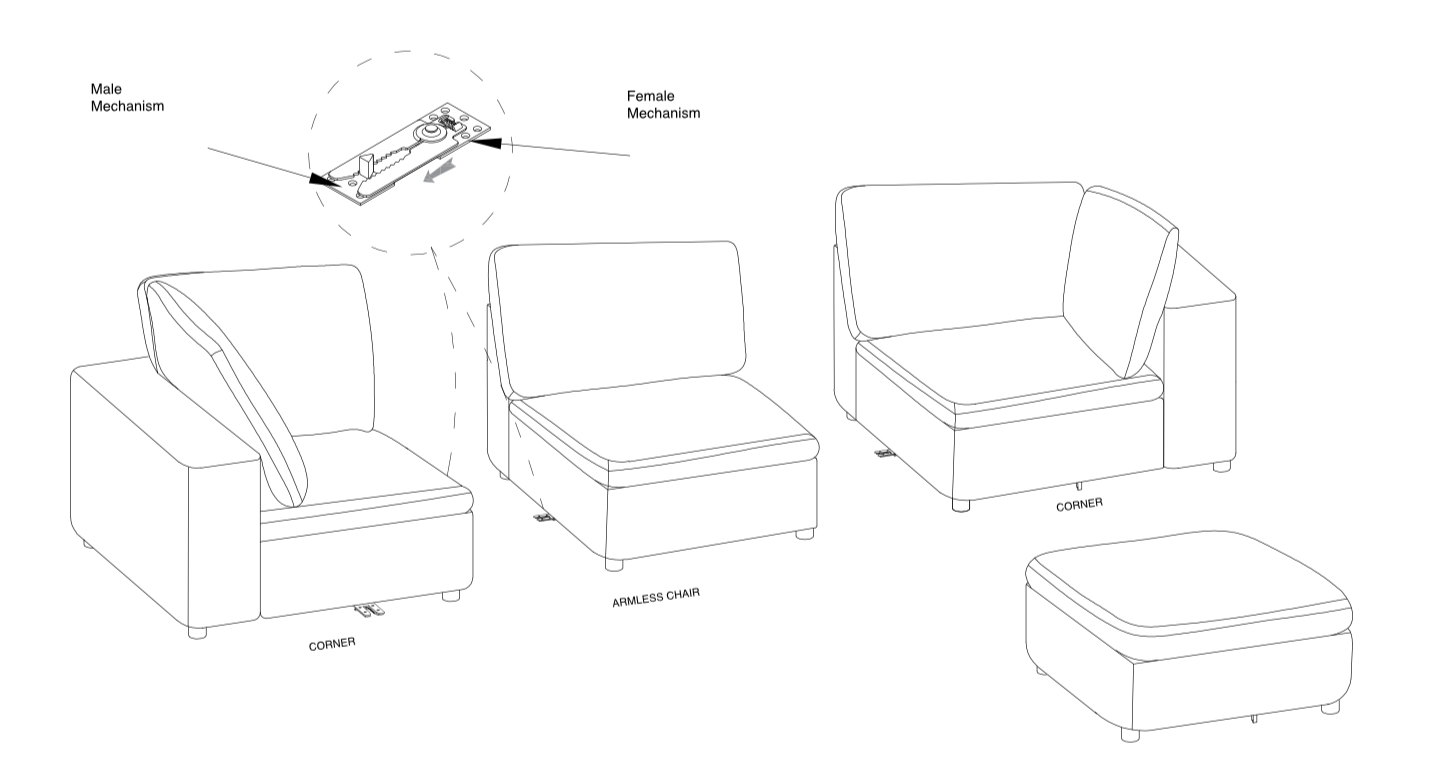

Connect the pieces together with our built-in clamps

Step 1 illustration showing modular pieces connecting with built-in clamps

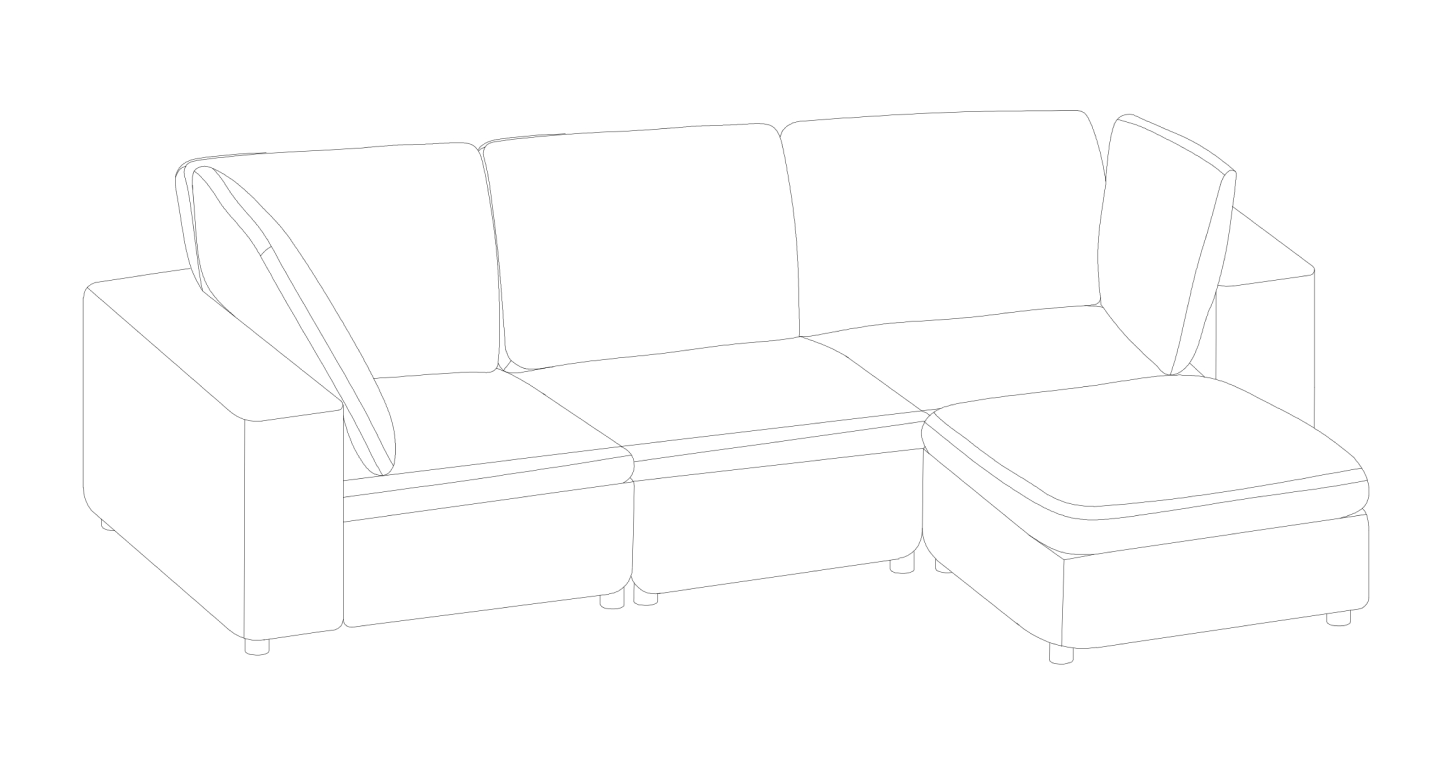

Complete

Once the modules are connected, check that each piece is aligned and sitting flat. Your Luun is ready to use.

Completed modular sofa assembly illustration
